Oak Framed Buildings

Our series of Oak Framed buildings are manufactured out of quaility European Oak. They are exclusively made from PEFC Oak. These buildings are cut from Green Oak and as such will be manufactured to order. All joints, mortices and dowel holes are precut and drilled, dowels are supplied. The building arrives in kit form with plans and all joints marked.

The uses are only limited by your imagination, Garages, Studio's, Jacuzzi Shelters, Barbeque Houses, Workshops the list is endless.

It is important to note that the ground works (including a 230mm brick plinth) must be ready prior to delivery. As the build is from Green Oak, it is important that it is constructed as soon as possible after delivery to ensure that the joints go together well. Remember, this is a natural material and faces that are exposed to light will, in time, go a silvery grey, some splits and cracks will also appear, this will not affect the structure's integrity.

The buildings are supply only but we are working with another of our suppliers to offer a building service and assistance in obtaining planning permission where applicable.

Complete Oak Construction - absolutely NO softwood components

All timber supplied - Planed All Round (PAR)
Roof Rafters notched and ready to assemble as per diagrams
Delivered palletised
Complete with plans
All parts number as per plan
Delivery 3-4 weeks from cleared deposit
All posts and beams are drilled appropriately and dowels are supplied

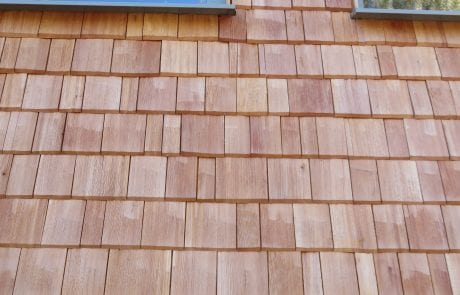

Roofing shingles available:
- Cedar Shingles
- Oak Shake roofing
Cladding options:
- Fresh sawn Feather edge
- 1 square edge 1 waney edge
- Machine Profiled cladding

To download a spec sheet for full dimensions on each style, click on either the title or the image.

A Series

AO1 Single Bay
Full-hip style Oak Framed Building made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3815mm (Total height = 4045mm)
Width: 3230mm
Depth: 6000mm

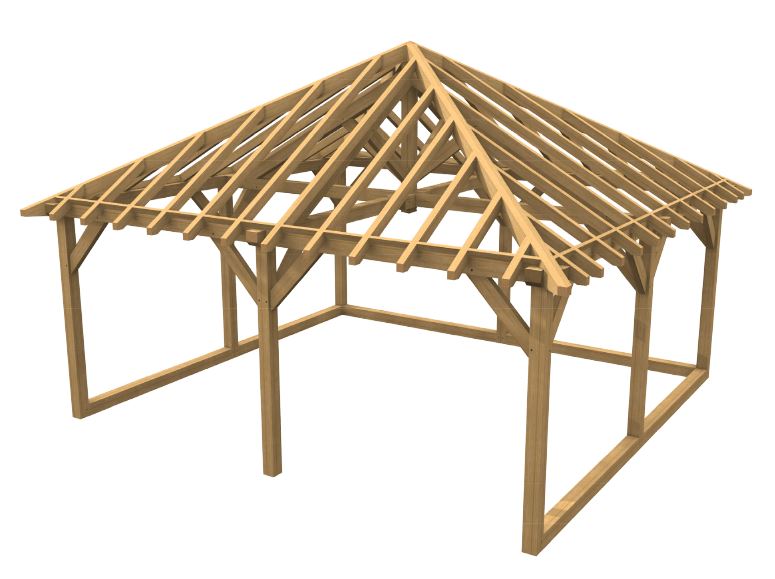

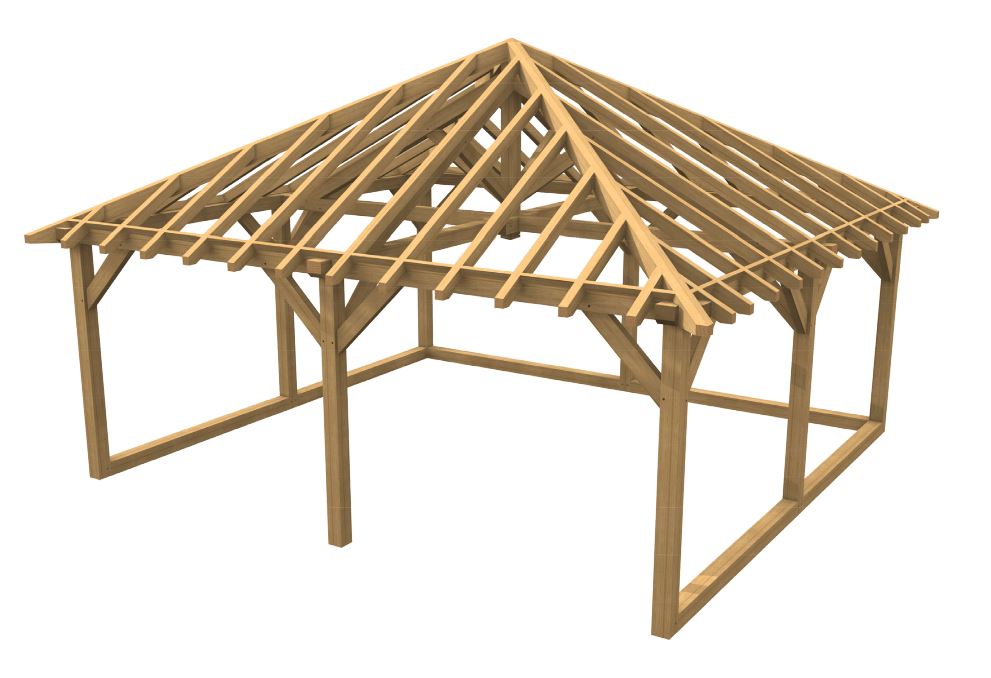

AO2 - 2 Bay
Full-hip style Oak Framed Building made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 5780mm (Total Height = 6010mm)
Width: 6230mm
Depth: 6000mm

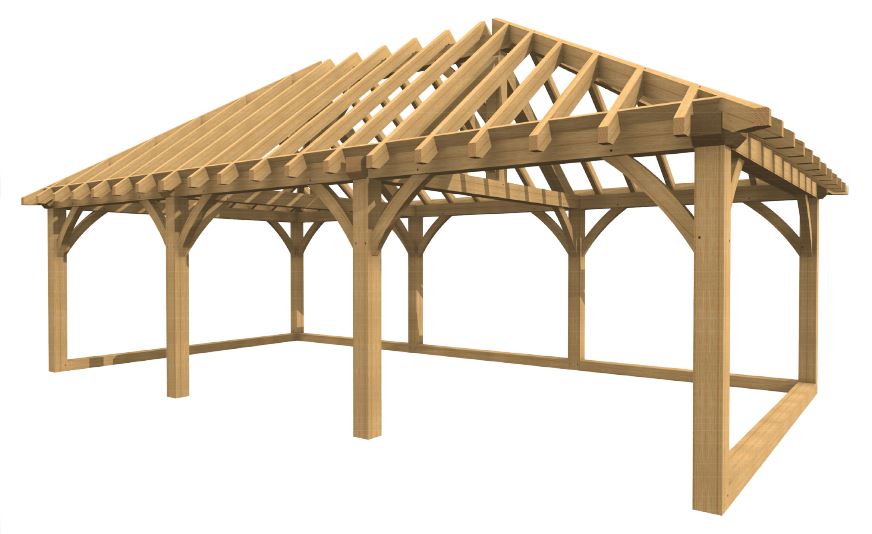

AO3 - 3 Bay
Full-hip style Oak Framed Building made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 5780mm (Total Height = 6010mm)
Width: 9230mm
Depth: 6000mm

B Series

B01- Single Bay
Gable end style Oak Framed Building made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3819mm (Total Height = 4049mm)
Width: 3230mm
Depth: 6000mm

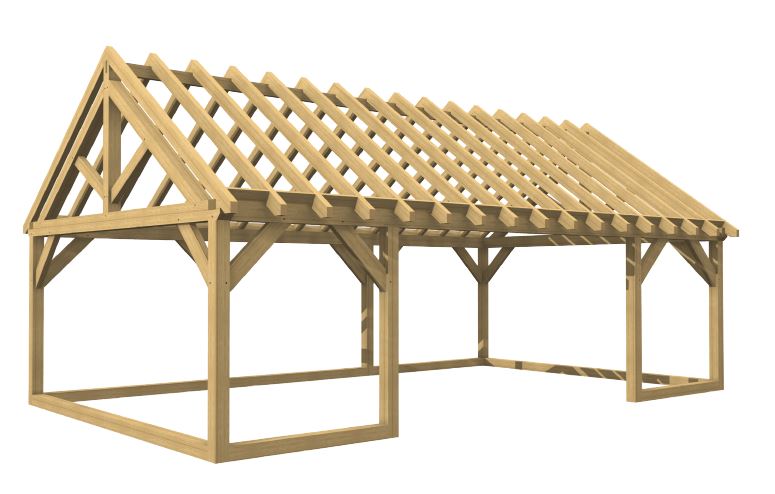

B02 - 2 Bay
Gable end style Oak Framed Building made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 5803mm (Total Height = 6033mm)
Width: 6230mm
Depth: 6000mm

B03 - 3 Bay
Gable end style Oak Framed Building made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 5803mm (Total Height = 6033mm)
Width: 9230mm
Depth: 6000mm

C Series

C01 - Single Bay
Full-hip style Oak Framed Building with rear cat-slide, made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3395mm (Total Height = 3625mm)
Width: 3115mm
Depth: 3800mm + 1200mm = 5000mm

C02 - 2 Bay
Full-hip style Oak Framed Building with rear cat-slide, made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3675mm (Total Height = 3905mm)
Width: 6000mm
Depth: 3800mm + 1200 =5000mm

C02R - 2 Bay with Left/Right Option
Full-hip style Oak Framed Building with rear cat-slide, made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3675mm (Total Height = 3905mm)
Width: 6000mm + 1200mm = 7200mm
Depth: 3800mm +1200mm = 5000mm

C03 - 3 Bay
Full-hip style Oak Framed Building with rear cat-slide, made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3675mm (Total Height = 3905mm)
Width: 8885mm
Depth: 5000mm

D Series

D01 - Single Bay
Gable end style Oak Framed Building with rear cat-slide, made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3680mm (Total Height = 3910mm)
Width: 3115mm
Depth: 5000mm

D02 - 2 Bay
Gable end style Oak Framed Building with rear cat-slide, made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3675mm (Total Height = 3905mm)
Width: 6000mm
Depth: 3800mm + 1200mm = 5000mm

D03 - 3 bay
Gable end style Oak Framed Building with rear cat-slide, made from the highest quality European Green Oak. To be mounted on a 230mm plinth.
Specifications
Height: 3675mm (Total Height = 3905mm)
Width: 8855mm
Depth: 3800mm + 1200mm = 5000mm
